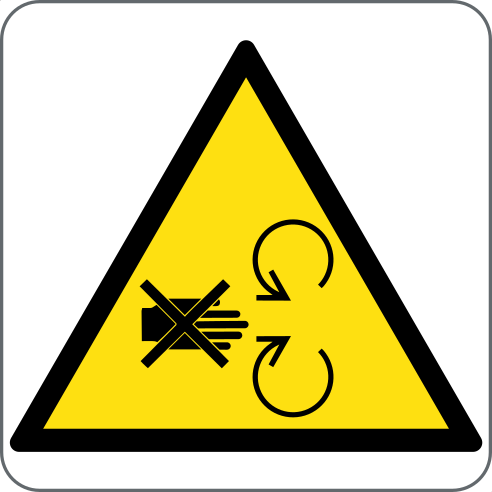

Moving Rolls Warning Sign - Machinery Directive 2006/42/EC Compliant Roller Hazard Sign

Moving Rolls Warning Sign - Machinery Directive 2006/42/EC Compliant Roller Hazard Sign

Prevent crushing and entanglement injuries with professional moving rolls warning signs compliant with Machinery Directive 2006/42/EC. Yellow triangle symbols identify dangerous roller nip points, counter-rotating rolls, and crushing hazards on printing equipment, textile machinery, and industrial processing equipment. Essential for facilities with roller systems requiring specific machinery hazard identification under European safety regulations.

Note: This is a machinery-specific hazard warning, NOT part of the ISO 7010 standardized symbol set.

Key Applications:

• Printing press roller systems
• Textile manufacturing calender rolls
• Paper mill processing rolls
• Laminating equipment
• Metal rolling mills
• Rubber and plastic calendering equipment

FAQ

When are moving rolls warning signs required on machinery?

Moving rolls warning signs are mandatory on all equipment with counter-rotating rollers, nip points, or crushing hazards between rolls per Machinery Directive 2006/42/EC. Risk assessments must identify roller systems where fingers, hands, or clothing could be drawn into dangerous nip points causing severe crushing injuries, amputations, or entanglement requiring clear hazard identification.

What machinery requires moving rolls hazard signage?

Printing presses, textile calender rolls, paper processing equipment, laminating machines, metal rolling mills, rubber calendering equipment, and plastic extrusion lines require moving rolls warnings. Any machinery with counter-rotating rollers creating nip points where body parts or clothing could be caught must display clear hazard warnings at operator positions.

How do moving rolls signs improve machinery safety compliance?

Professional warning signs reduce roller-related injuries by 55-70% through clear nip point identification combined with machine guarding and safe work procedures. Signs support Machinery Directive compliance, reinforce emergency stop training, and demonstrate risk assessment documentation showing residual roller hazards identified with appropriate warnings.

Are moving rolls signs different from general rotating equipment warnings?

Yes, moving rolls warnings specifically address counter-rotating roller nip points—a unique crushing hazard where two rollers rotate toward each other creating dangerous convergence points. This differs from single rotating shaft warnings, requiring specific identification of the roller nip point crushing mechanism under machinery-specific safety requirements.

What size moving rolls warning signs work best for roller equipment?

Roller equipment signs: 100-150mm for local nip point identification on machinery. Standard press/mill equipment: 150-200mm for operator visibility. Large industrial roller systems: 200-300mm ensuring recognition from safe approach distances of 3-5 metres before workers enter roller hazard zones.

Can moving rolls signs withstand printing and manufacturing environments?

Industrial-grade signs using aluminum (1-2mm) or rigid plastic (2-3mm) withstand printing inks, textile processing chemicals, manufacturing lubricants, and continuous operations. Chemical-resistant coatings protect against industrial fluids while maintaining visibility through vibration, temperature variations, and demanding production environments ensuring 5-10+ year performance.

How do moving rolls signs integrate with machine guarding programs?

Signs complement physical roller guards by identifying specific nip point locations requiring guard protection. Warnings alert workers to hazards during guard removal for maintenance, web threading, or setup operations. Signs support lockout/tagout procedures by marking hazardous zones requiring energy isolation during roller system maintenance.

What maintenance do moving rolls warning signs require?

Monthly inspections verify sign visibility and adhesion during routine machinery safety checks. Quarterly roller safety audits confirm proper placement at all counter-rotating nip points. Ink, dust, or chemical accumulation requires immediate cleaning. Damaged signs compromise nip point hazard communication requiring immediate replacement maintaining roller safety awareness.

Do moving rolls signs need coordination with roller safety training?

Yes, moving rolls signs must integrate with roller nip point training, emergency stop procedures, and safe web threading practices. Signs support training on nip point mechanics (rollers rotating toward each other), safe material feeding distances (minimum 150-200mm from nip), and emergency response ensuring workers understand roller crushing risks and protective measures.

Order your moving rolls warning signs today ensuring machinery safety compliance with Machinery Directive 2006/42/EC requirements and preventing serious roller nip point injuries.

Compliance Standards:

• Machinery Directive 2006/42/EC - Essential Health and Safety Requirements
• EN ISO 12100:2010 - Safety of machinery risk assessment
• Yellow triangle warning format per safety signage conventions
• NOT part of ISO 7010 standardized symbol set (machinery-specific roller hazard)

Roller Nip Point Hazard Context:

• Nip point: Area where two counter-rotating rollers converge
• Crushing force: Typically 5-50+ tonnes depending on equipment
• Pull-in speed: 0.5-10 metres/second drawing objects into rollers
• Injury severity: Amputations, severe crushing, entanglement

Material Options:

• Aluminum (1-2mm): Chemical-resistant, 10+ year industrial performance
• Rigid Plastic (2-3mm): Impact-resistant, 5-7 year manufacturing lifespan
• Chemical-Resistant Coatings: Protection against inks, solvents, lubricants

Size Options (Metric):

• Nip point labels: 100x100mm to 150x150mm
• Standard equipment signs: 150x150mm to 200x200mm
• Large roller systems: 200x200mm to 300x300mm

Installation Guidelines:

• Location: Within 0.3-0.5 metres of each roller nip point
• Height: 1.2-1.7 metres where equipment design allows
• Multiple signs: Required for equipment with multiple nip points
• Operator positions: Visible from all normal working positions

Machinery Directive Requirements

Risk Assessment Obligations:

• Identify all roller nip points during machinery design phase
• Residual risks after guarding must be clearly warned
• Specific warnings for counter-rotating roller hazards
• User information must include nip point locations and risks

Roller Injury Statistics:

• Nip point injuries: 3-5% of machinery-related injuries in manufacturing
• Severity: 60-70% result in amputations or permanent disability
• Common industries: Printing (35%), textiles (25%), paper (20%), plastics (15%)
• Prevention: Guards + warnings + training = 70-80% injury reduction

Common Roller Nip Point Hazards

Printing Industry:

• Printing press impression rollers (nip points every 300-600mm)
• Ink transfer roller systems
• Paper feed and delivery rollers
• Folding machine roller systems

Textile Manufacturing:

• Calender rolls (pressure up to 30 tonnes)
• Fabric finishing equipment
• Yarn processing machinery
• Dyeing equipment roller systems

Paper & Converting:

• Paper mill processing rolls
• Slitting and rewinding equipment
• Laminating machinery
• Coating application rollers

Plastics & Rubber:

• Calendering equipment (temperatures 100-200°C)
• Extrusion die rollers
• Sheet forming equipment
• Rubber mixing mills

Nip Point Safety Distances

Safe Material Feeding:

• Minimum distance: 150-200mm from nip point
• Hand tools required for closer material positioning
• Emergency stop within reach (maximum 600mm)
• Guard opening height: Maximum 6-8mm preventing finger entry
